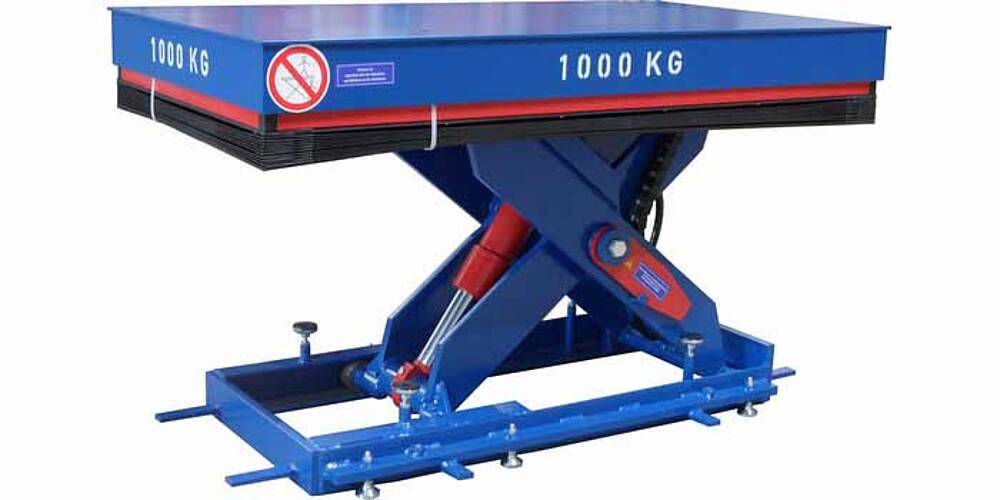

Discover how our hydraulic lift table with a load capacity of 1,000 kg and a platform size of 1,300 x 700 mm achieves a positioning accuracy of +/- 1 millimeter - ideal for precise applications.
Use and function of the lift table
The hydraulic lift table was specially developed for the safe and precise lifting of trolleys. Six claws are mounted on the platform and serve as reliable load handling devices. The desired lifting height can be conveniently set via an intuitive control panel - quickly, easily and ergonomically.
Features of the hydraulic lift table
Positioning accurate to the millimeter
Thanks to the combination of programmable logic controller (PLC) and rope length encoder, the scissor lift platform achieves a positioning accuracy of ±1 mm. While the rope length encoder continuously measures the current lifting height, the PLC takes over the exact control of valves and motors - for precise height adjustment.
Platform with threaded holes
The platform is equipped with M8 threaded holes that have been positioned according to individual customer specifications. They are used to securely mount the six claws for fixing the roller carriages.
Bellows as underrun protection
In addition to the foot protection safety edge, a circumferential bellows protects against interference with the scissor mechanism. This safety feature effectively minimizes the risk of injury to operating personnel.
