The reference projects below show that a custom-built lift table or column lift is no problem for us. For this reason, our scissor lifts and goods lifts are used in a wide range of industries in the most diverse operating conditions, such as lift tables for outdoor use or in potentially explosive zones (Ex zones).

back
1
2
3
4
5
next

Payload:	4.000	kg
Witdth:	1.635	mm
Length:	4.100	mm
Effective Stroke:	900	mm

Lifting and rotating device for ergonomics

Payload:	1.000	kg
Width:	830	mm
Length:	1.250	mm
Effective Stroke:	800	mm

View of the scissor lift table and the drive unit

Payload:	2.000	kg
Width:	800	mm
Length:	2.100	mm
Effective Stroke:	4.800	mm

A cute column lifter as a loading lifting table

Payload:	1.000	kg
Width:	1.080	mm
Length:	1.250	mm
Effective Stroke:	1.000	mm

High effective stroke with compact dimensions

Payload:	1.000	kg
Width:	1.200	mm
Length:	1.700	mm
Effective Stroke:	4.150	mm

Payload:	750	kg
Width:	750	mm
Length:	1.260	mm
Effective Stroke:	4.355	mm

Goods elevator with an extra large platform

Payload:	2.000	kg
Width:	2.000	mm
Length:	4.500	mm
Effective Stroke:	3.500	mm

Simplified goods elevator without a passageway

Payload:	1.000	kg
Width:	1.000	mm
Length:	1.970	mm
Effective Stroke:	3.420	mm

Payload:	2.000	kg
Width:	1.500	mm
Length:	1.900	mm
Effective Stroke:	430	mm

Payload:	2.000	kg
Width:	500	mm
Length:	4.000	mm
Effective Stroke:	780	mm

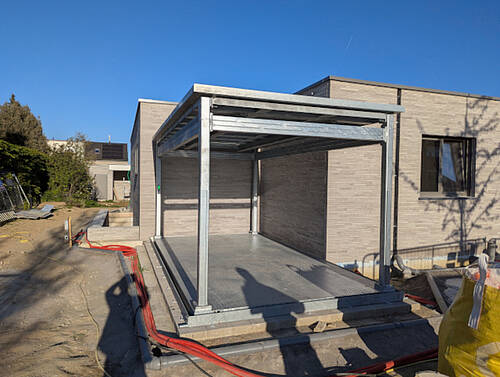

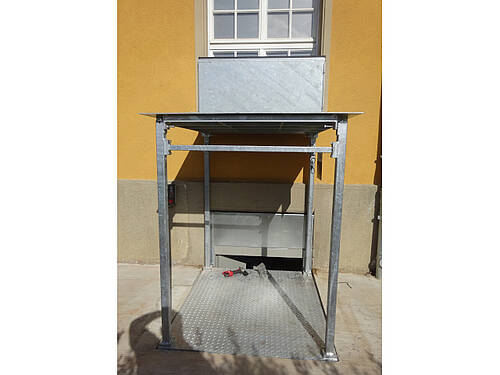

Underfloor elevator based on a lifting table

Payload:	1.000	kg
Width:	1.500	mm
Length:	2.700	mm
Effective Stroke:	3.300	mm

Payload:	2.000	kg
Width:	830	mm
Length:	1.250	mm
Effective Stroke:	800	mm

Payload:	1.000	kg
Width:	2.000	mm
Length:	2.700	mm
Effective Stroke:	3.300	mm

Payload:	4.000	kg
Width:	800	mm
Length:	1.780	mm
Effective Stroke:	1.110	mm

Payload:	2.000	kg
Width:	2.850	mm
Length:	5.500	mm
Effective Stroke:	5.000	mm

Payload:	1.500	kg
Width:	2.000	mm
Length:	3.000	mm
Effective Stroke:	3.680	mm

Payload:	1.000	kg
Width:	1.500	mm
Length:	3.100	mm
Effective Stroke:	2.060	mm

Payload:	1.500	kg
Width:	1.000	mm
Length:	2.000	mm
Effective Stroke:	2.650	mm

Payload:	2.000	kg
Width:	2.000	mm
Length:	1.500	mm
Effective Stroke:	915	mm

Payload:	500	mm
Width:	1.200	mm
Length:	4.000	mm
Effective Stroke:	1.600	mm
