100% quality control

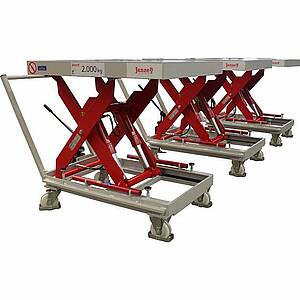

It doesn't matter whether you order one or twenty mobile lift tables. Every single one is subjected to a rigorous test.
the most common variants...
Get a free offer for your mobile lift table in two steps. You are welcome to note any adjustments (e.g. a different payload or different dimensions) in the 'Change requests' field.
| Payload: | 2.000 | kg |
| Width: | 950 | mm |
| Length: | 1.250 | mm |
| Effective Stroke: | 800 | mm |
| Payload: | 1.500 | kg |
| Width: | 830 | mm |
| Length: | 1.050 | mm |
| Effective Stroke: | 600 | mm |
| Payload: | 1.500 | kg |
| Width: | 830 | mm |
| Length: | 1.170 | mm |
| Effective Stroke: | 600 | mm |
| Payload: | by request |
| Width: | by request |
| Length: | by request |
| Effective Stroke: | by request |
Mobile lift table: Manoeuvring and working with heavy loads
Mobile lift tables make the daily work with bulky goods or merchandise easier. They carry out two functions at once: lifting and transporting large loads.
Although they can be used for general purposes, our lift table trolleys are often used as mobile lifting work tables. They are used either as a transport aids for tools and spare parts or as an assembly or welding table to bring machine components to a comfortable work height.
The structure of the lifting mechanism of a mobile lift table is somewhat reminiscent of a scissor lift pallet truck. However, higher working load limits (WLL) can often be achieved by using solid shears and a fixed undercarriage. Our mobile lift tables provide the ideal solution for the flexible handling of larger loads.
[up]
The lifting motion

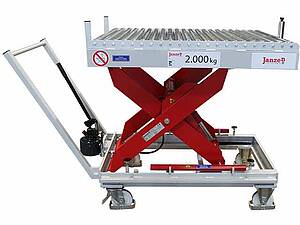

We can equip our lift table trolleys either with a hand pump or with an electric controller. The selected drive type depends on the price, the required working load limit (WLL), lifting height and the desired lifting time. An electric drive will probably be useful if a relatively large height needs to be negotiated with the aid of a double-scissor lift table, for example. With rather low payloads and a low lifting height, the pump hydraulics can be suitable. We will be happy to assist you in deciding which drive type best suits your requirements.
[up]
Akkubetrieb oder Netzanschluss?
Wenn es darum geht, schwere Lasten ortsunabhängig schnell und mühelos auf die richtige Höhe zu heben, sind unsere fahrbaren Hubtische mit elektrohydraulischem Antrieb die richtige Wahl. Sie haben gegenüber manuell betriebenen Hubwagen den Vorteil, dass die Last mit nur einem Knopfdruck gehoben oder gesenkt werden kann und ein Pumpen per Hand oder Fuß entfällt. Gerade wenn der Hubtisch oft benötigt wird, sorgt der elektrohydraulische Hubvorgang für eine deutliche Arbeitserleichterung und ein schnelleres Heben. Nicht nur die Produktivität wird gesteigert, auch die Gesundheit der Mitarbeiter wird durch die ermüdungsarme und rückenentlastende Arbeitsweise geschont.
Je nach Verwendungszweck kann entweder ein Akku- oder ein Netzbetrieb sinnvoll sein. Um Ihnen die Entscheidung zu erleichtern, finden Sie nachfolgend Argumente für die jeweilige Betriebsart:
Wann ein Akkubetrieb in Frage kommt:
- Der Scherenhubtisch soll völlig frei verfahrbar sein, ohne auf eine Netzsteckdose bzw. ein Stromkabel achten zu müssen.
- Der Bewegungsradius ist groß, d.h. der Hubtisch wird häufig an weit auseinanderliegenden Arbeitsplätzen benötigt.
- Steckdosen sind Mangelware.
Wann Sie sich für einen Netzanschluss entscheiden sollten:
- Der hydraulische Hubtisch wird im 3-Schicht-Betrieb eingesetzt, so dass Sie keine Ladezeiten gebrauchen können.
- Der Bewegungsradius ist gering. Das heißt, der Hubtisch muss nur wenig Fahrtstrecke zurücklegen.
- Der Einsatzort ist mit ausreichend Steckdosen bestückt.
Für den Akkubetrieb setzen wir auf wartungsarme Batterien, die sich an jeder Netzsteckdose (230 V, 50 Hz) aufladen lassen. Das leistungsstarke Ladegerät kann dabei je nach Bedarf direkt in den Hubtisch integriert werden. Auf Wunsch liefern wir auch wartungsfreie Gelbatterien.
Beim Netzanschluss können wir das Kabel entweder lose liefern oder auf selbstaufwickelnder Kabeltrommel.
Egal, für welche Betriebsart Sie sich am Ende entscheiden: Alle unsere fahrbaren, elektrischen Hubtische sind mit Hilfe von Druckknöpfen einfach zu betätigen. Das Bedienelement ist dabei seitlich am Schiebebügel angebracht, so dass der Hubtisch bequem gehoben oder abgesenkt werden kann.
The undercarriage

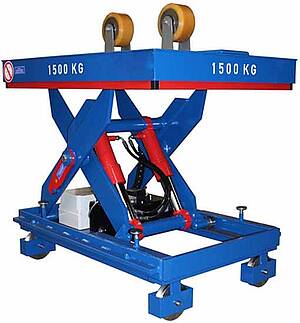

We adapt the undercarriage to meet your needs. From a lift table on wheels to a powered rail undercarriage with stainless steel rollers, we can supply you with all possible variants. The most frequently requested version is the manually movable lift table trolley on wheels. Two fixed and two swivelling castors with parking brake are usually used for this purpose. A version with four swivelling castors can also be supplied. Whether the castors are made of plastic or solid rubber depends on the nature of the floor and the working load limit (WLL) of the scissor lift table. With the right equipment, loads of up to 2 tons can be moved by hand, and with a non-driven rail undercarriage even up to 4 tons. A push handle is recommended to make it more comfortable to push. The handle can be fixed or foldable.
Given the wide range of options available, we will be happy to provide you with personal advice. We will assist you in deciding which undercarriage is the right one for your purpose. You can also find initial information in our article: "Lift tables with undercarriage“ or "How easy is it to push a mobile lift table?".
[up]
More flexibility through additional extras

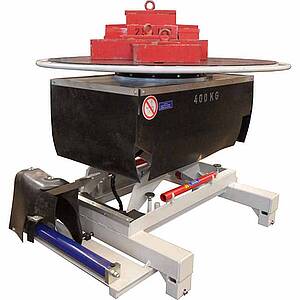

Of course, we also supply other accessories for the mobile lift tables. The range of functions can easily be extended with the help of standardised modules. Regardless of whether you want to turn or tilt loads or whether the lift table needs to be supplemented with additional conveyor technology, there is a matching module for all applications. Have a look at the brief overview on the lift table accessories page.
[up]
Deciding on the right mobile lift table
The following questions are often asked when considering an offer. Is that the scissor liftthat I need? Did the supplier understand me correctly?
We believe in the well-known saying to make sure that it does: A picture is worth a thousand words. After placing the order, you will receive a drawing for approval from us with all the key points of your order: from the actual scissor lift table to the installation situation.
[up]
All from a single source
We take care of all phases of production for you: from the first consultation to the design and structural steel engineering to the installation of the scissor lift at your site. The advantage for you: You have a point of contact with the necessary expertise for all your questions about lift tables and column lifts.
[up]
Frequently asked questions & our answers ...
Where is the headquarters of Janzen Lifttechnik GmbH?
We are at home in the rural Emsland, more precisely in Niederlangen a part of the Lathen municipality directly on the A31 motorway. This means that we are roughly halfway between North Rhine-Westphalia and the North Sea, right on the Dutch border.
Our region is known, among other things, for the various nature reserves, the well-developed cycle paths, the manufacture of cruise ships, as well as the headquarters of various distilleries.
Should you ever come to our region, we look forward to a visit in our Plant.
Where are the lifting tables and elevators produced?
With us, not only does the final assembly take place in Germany, but we also cover the entire production chain from construction through steel construction to final assembly in our plant in Niederlangen. With us you get a real 'Made in Germany'.
Is the offer aimed only at traders or also at private individuals?
Even if our products are mainly used in an industrial environment, we naturally also offer them to private individuals.
Just give us a call or send us an inquiry and we will be happy to contact you.
Will I receive a drawing before production starts?
In any case. To ensure that you get the product that you really want, we provide you with an approval drawing before production begins. In addition to the actual product, this also includes the installation situation. As the saying goes, a picture is worth a thousand words.
Can I get a CAD model?
You can receive a (greatly) simplified CAD model of our standard products before ordering. After the order and the construction phase, we can also provide you with CAD models of the individual special lifting tables. A data exchange is possible in all common formats (.stp, .dxf, .dwg etc.).
Where can you deliver to?
We produce our lifting tables and column jacks in accordance with European standards and guidelines. Accordingly, our sales area is limited to all countries that recognize these standards and guidelines (e.g. the members of the European Union, Switzerland and Australia).
Is it possible to assemble in the same area?
On request, we assemble our systems throughout Germany, as well as in the neighboring countries of Germany.
