- High load capacities
Loads up to 16,000 kg - Versatile
For a wide range of lifting tasks - Customisable
Dimensions and equipment as required
Personal project consultation:
+49 5939 96796-90
Or request a quote directly:
Request a quote
Quality from Our Own Production
Carefully manufactured and tested before delivery.
Which Configuration Is Right for Your Project
Choose a preconfigured option as a starting point or request a custom solution. For options 1–3, you can specify different load capacities, dimensions and equipment directly in the “Change requests” field.
| Payload: | 2,000 | kg |
| Platform length: | 2,000 | mm |
| Platform width: | 1,000 | mm |
| Effective stroke: | 900 | mm |
| Payload: | 2,800 | kg |
| Platform length: | 2,300 | mm |
| Platform width: | 2,300 | mm |
| Effective stroke: | 1,200 | mm |
| Payload: | 1,000 | kg |
| Platform length: | 2,400 | mm |
| Platform width: | 1,500 | mm |
| Effective stroke: | 2,000 | mm |
| Payload: | by request |
| Platform length: | by request |
| Platform width: | by request |
| Lifting height: | by request |
Table of Contents
[Expand/Collapse]
- 1. What Is a Scissor Lift Table?
- 2. What Customisation Options Are Available for Scissor Lift Tables?
- 3. Why Are Our Scissor Lift Tables Hydraulically Driven?
- 4. What Safety Features Do Our Scissor Lift Tables Have?
- 5. How Much Does a Scissor Lift Table Cost?
- 6. How Quickly Can a Scissor Lift Table Be Delivered?
A scissor lift table is a lifting device in which a platform is raised and lowered using a scissor mechanism.

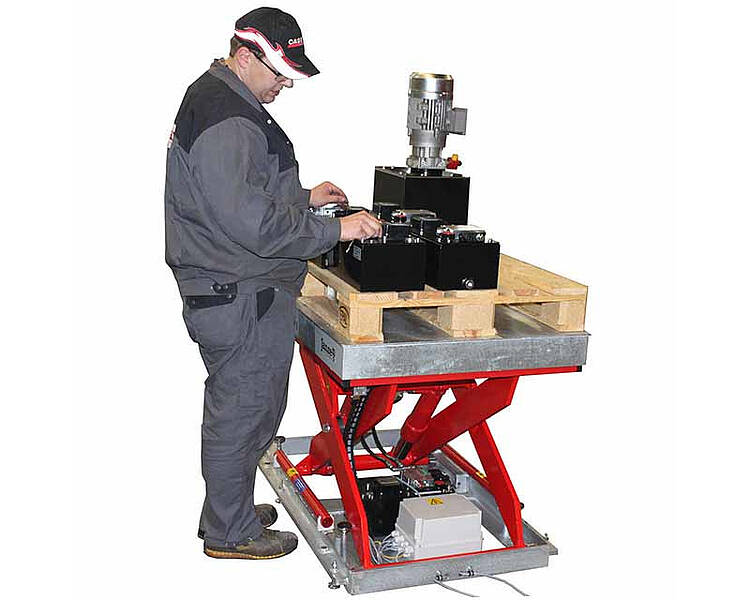

Scissor lift tables enable heavy loads to be safely positioned and moved between different height levels. They are primarily used in production, assembly and logistics, for example to create ergonomic workstations, in production facilities or for loading and unloading.
Typical loads include workpieces, pallets, machinery and other heavy goods.
Scissor lift tables can be adapted to different operating and installation conditions. Load capacity, lifting height and platform dimensions are designed to meet the specific requirements.
Various equipment options are also available. These include bellows, guardrails, rotating platforms and tilting devices.
For an overview of the available options, see our lift table accessories page.
Our scissor lift tables are hydraulically driven – and for good reason: hydraulic drives are well suited to lifting heavy loads and are robust and relatively low-maintenance.
Another advantage is the flexible positioning of the hydraulic power unit. It can be installed separately from the lift table and, depending on the design, can also be used for additional hydraulic functions.
Find out more about the advantages and disadvantages in our technical article “Hydraulic Lift Tables: Pros and Cons”.
Depending on the configuration, our scissor lift tables are equipped with various safety features. Standard equipment includes, for example, a safety edge under the platform, hose rupture valves in the hydraulic cylinders, maintenance supports and hold-to-run controls.
Depending on the application and installation conditions, additional safety features can be provided. These include guardrails, platform locks, roll-off protection systems and slip-resistant platform surfaces.
The specific safety equipment is determined according to the individual configuration and project requirements.
The cost of a scissor lift table depends on the specific configuration and project requirements. Key factors include load capacity, lifting height and platform dimensions, as well as the required equipment.
The installation conditions and any special design requirements can also affect the price. Additional features such as rotating platforms, roller conveyors or other equipment options are taken into account when designing the lift table.
As our scissor lift tables can be configured to meet your specific requirements, we will prepare an individual quotation based on the information you provide.
For a specific cost example of a dock lift table, see our article “How Much Does a Lift Table Cost?”.
Are Our Scissor Lift Tables Suitable for Outdoor Use?
Our scissor lift tables can be designed for both indoor and outdoor use. For outdoor operation, the construction and equipment can be adapted to the specific environmental conditions. This can include corrosion protection and appropriate design of the electrical and hydraulic systems.
For more information, see our article Lift Tables for Outdoor Use.
Do We Also Offer Mobile or Relocatable Scissor Lift Tables?

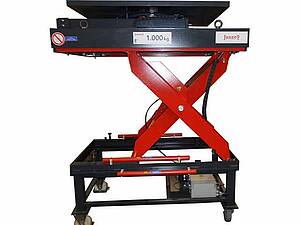

Yes. Depending on the requirements, both relocatable and mobile versions are available. Relocatable lift tables can, for example, be equipped with a raised base frame or forklift pockets. For applications where the lift table needs to be moved regularly, mobile versions are available.
For more information, see our Mobile Lift Table page.
Will I Receive an Approval Drawing Before Production?
Yes. Before production begins, you will receive an approval drawing showing the relevant technical specifications and dimensions of the scissor lift table. Depending on the project, it may also include information about the intended installation conditions.
Is a CAD Model of the Scissor Lift Table Available?

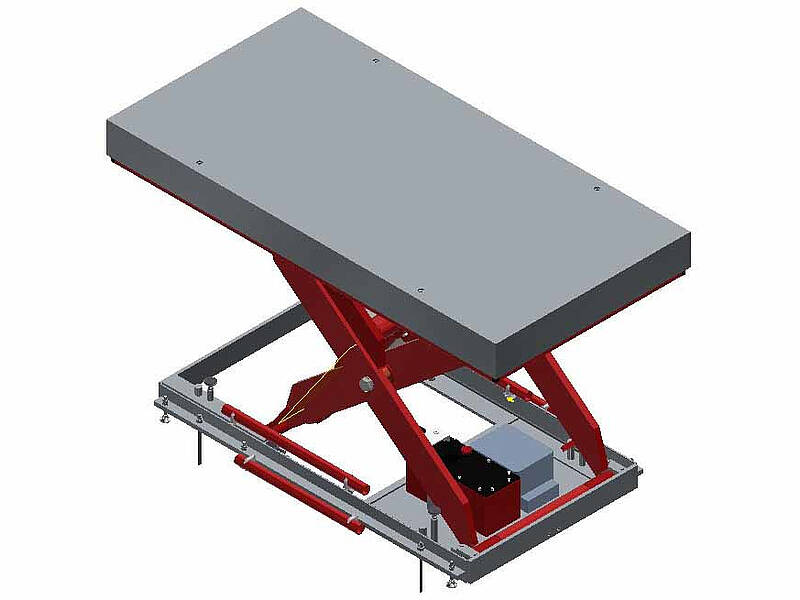

Yes. Once the order and design phase have been completed, we can provide CAD data for the scissor lift table on request. Common formats include STEP, DXF, DWG and IFC.
This allows the lift table to be integrated into existing planning documents or system layouts.
How Are Delivery and Installation Handled?
Delivery and installation are coordinated according to the configuration of the scissor lift table and the conditions on site. On request, our installation team can carry out the installation and commissioning. For suitable configurations, installation by the client is also possible.
If installation is carried out by us, the necessary site information will be coordinated in advance.
Which Countries Do We Deliver Scissor Lift Tables To?
We deliver scissor lift tables throughout the European Union and to Switzerland. Deliveries to other countries are assessed on a project-specific basis upon request.
Where Do We Offer Installation for Our Scissor Lift Tables?
Our installation service is available throughout Germany and in neighbouring countries. The specific scope of services is agreed according to the individual project.
What Warranty Do We Offer?
Our scissor lift tables come with a standard 24-month warranty when used within the EU. With a suitable maintenance contract, this can be extended to up to 60 months.
Are Spare Parts Available for Our Scissor Lift Tables?
Yes. As the manufacturer, we can produce various mechanical components ourselves and also keep commonly used components in stock. The availability and delivery time of specific spare parts depend on the individual component.
Can I Visit Janzen Lifttechnik's Production Facility?
Yes. A visit to our production facility in Niederlangen can be arranged in advance. This gives you the opportunity to see our manufacturing processes and lift table solutions currently in production for yourself.
Alternatively, you can find examples of completed projects in our references.
| Payload: | 2,000 | kg |
| Platform length: | 1,250 | mm |
| Platform width: | 830 | mm |
| Effective Stroke: | 800 | mm |
| Payload: | 1,000 | kg |
| Platform length: | 1,250 | mm |
| Platform width: | 830 | mm |
| Effective Stroke: | 800 | mm |
| Payload: | 4,000 | kg |
| Platform length: | 1,780 | mm |
| Platform width: | 800 | mm |
| Effective Stroke: | 1,110 | mm |
| Payload: | 500 | mm |
| Platform length: | 4,000 | mm |
| Platform width: | 1,200 | mm |
| Effective Stroke: | 1,600 | mm |
| Payload: | 300 | kg |
| Platform length: | 1,050 | mm |
| Platform width: | 400 | mm |
| Effective Stroke: | 600 | mm |
| Payload: | 6,000 | kg |
| Platform length: | 4,000 | mm |
| Platform width: | 600 | mm |
| Effective Stroke: | 600 | mm |
| Payload: | 1,600 | kg |
| Platform length: | 1,500 | mm |
| Platform width: | 1,000 | mm |
| Effective Stroke: | 350 | mm |
| Payload: | 250 | kg |
| Platform length: | 2,960 | mm |
| Platform width: | 1,110 | mm |
| Effective Stroke: | 300 | mm |
| Payload: | 1,000 | kg |
| Platform length: | 1,300 | mm |
| Platform width: | 1,100 | mm |
| Effective Stroke: | 1,000 | mm |
| Payload: | 2,000 | kg |
| Platform length: | 2,100 | mm |
| Platform width: | 800 | mm |
| Effective Stroke: | 4,800 | mm |
| Payload: | 2,000 | kg |
| Platform length: | 1,900 | mm |
| Platform width: | 1,500 | mm |
| Effective Stroke: | 430 | mm |
How Does a Hydraulic Lift Table Work?
Would you like to know how a hydraulic lift table works? In our video, we explain how the lifting and lowering movement works and how the load is held securely — for ergonomic, safe and efficient working.
Lift Table with Rotating Platform
The video shows a scissor lift table with a powered rotating platform. This allows workpieces not only to be raised, but also to be rotated and positioned on the platform.
